            Purposes

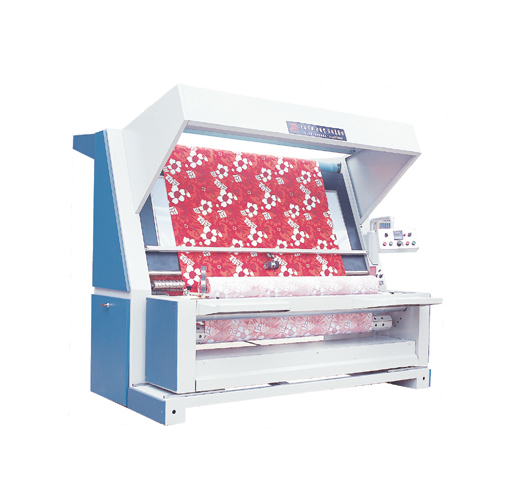

            Crease-resistant roll fabricchecking machine is mainly used in cotton mill,printing-dyeing ;lant woo mill,garment factory,manmade fur factory,artificial leather factory and by commodity inspection units for the inspecting of the diverse fabrics and their full-width rolling.Itallows to feed the fabrics in roll or folded way,Especially it is good for the inspecting and rolling of export fabries.  |


             |




			- Its biggest advantage volumes thin, thick-based, ultra-thin, coated cloth, and other post-mortem ---- Volume cloth cloth does not wrinkle

			- Frequency variation stepless speed adjustment for controlling the inspection & rooling speed.

			- Photodlectric control for automatic edge-allgnment.

			- Amendableelectronic length-measuring meter(available of counting in metre,yard,totalization and automatic stop functions,also display linear speed,shift of inspection and rolling.)

			- Pioneering system in china-a roller speed differential device for free adjustment of the tension of the tension of the fabrics under inspecting and rolling.

			- May be optionally fitted with an edge suction device.

			- May be optionally fitted with an automatic stopper in case of fabric feeding breakage.

			- May be optionally fitted with imported or China-made length and defect point printer or barcode priner.

			- May be optionally fitted with imported or China-made automatic or manual cutter

			- May be optionally fitted with computer enterface to effect the computer net connection also optionally fitted with software for the finished products wordshop,finished ware house management to effect a database management over the warehorse-in/out of the finished products and their indexing.

			  |



                    Main technical parameters
              |




    | Max diameter of fabric rolls
       |
    300mm-800(at choice) |


    | Working width |
    1900mm-2300mm(Can make of to order) |


    | Speed of rolling  |
    9-90m/min(stepless) |


    | Edge-ailiging error for reeling |
    ≤6mm |


    | Max.error for fabric length-counting |
    0.50% |


    | Dimensions(L×W×H) |
    2430×2200×2000mm(180型) |


    | Weight of unit |
    1000kg |


    | Fabric alignment movement |
    Fabirc aligment deviatio≤10mm |


 |


          |
